The Challenge
A drone that needs a human operator on site is a limited solution. The requirement in this project was a closed station — a smart box in which the drone waits, and from which it exits, takes off, and returns with no human touch, on a remote command. The engineering problem is not the takeoff itself but everything that happens before it: the drone must be in an exact position and at an exact angle before the propellers spin up, the cover must open fully rather than partially, and if anything jams, the system has to know it — and not launch.
The Engineering Solution

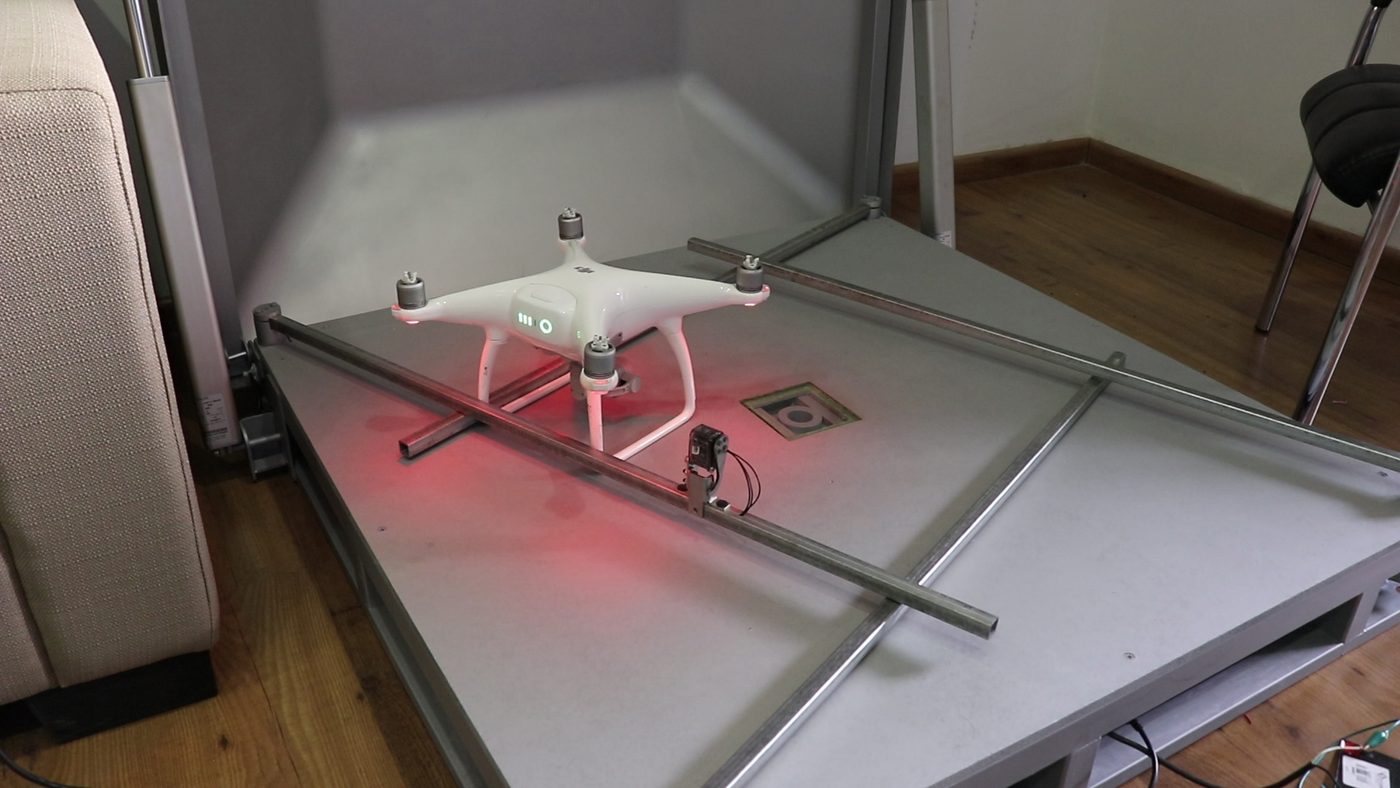

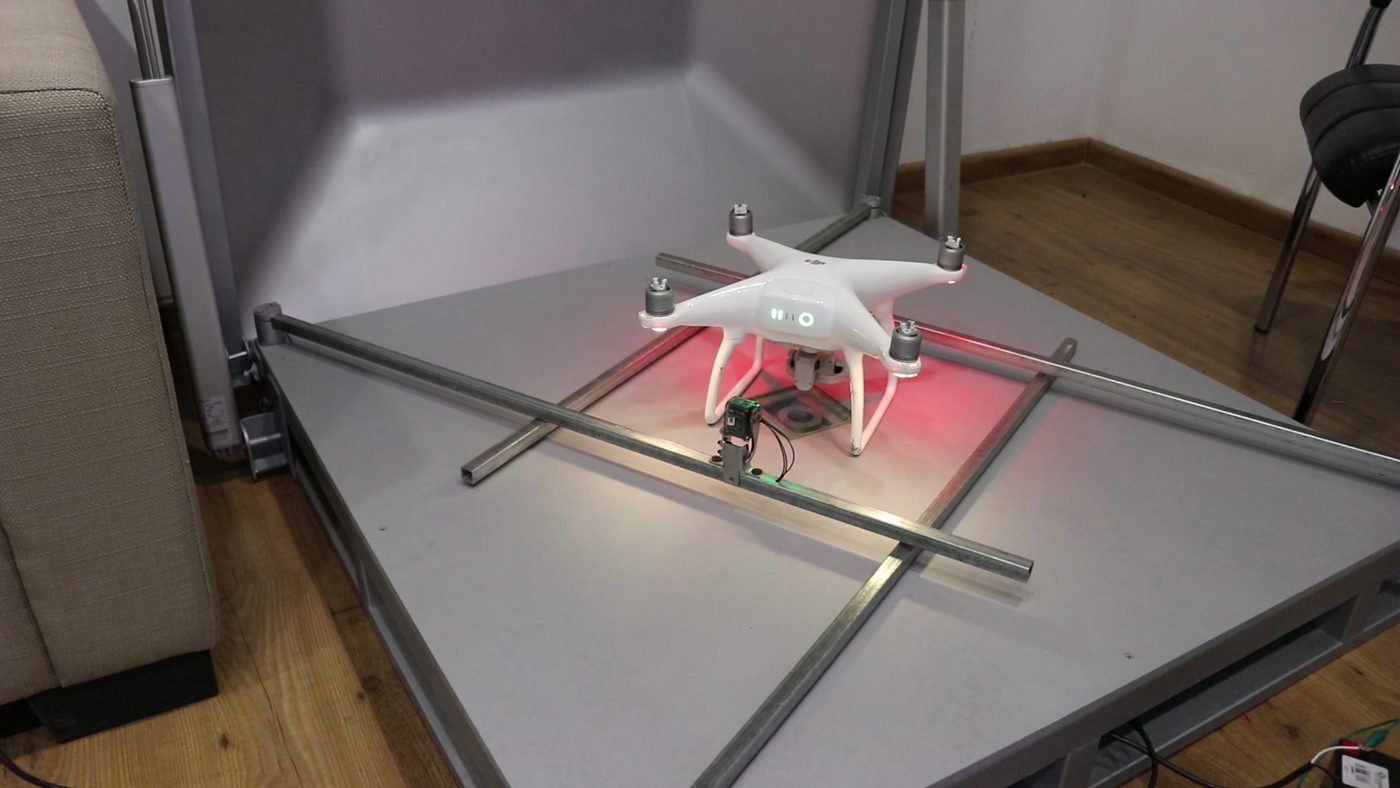

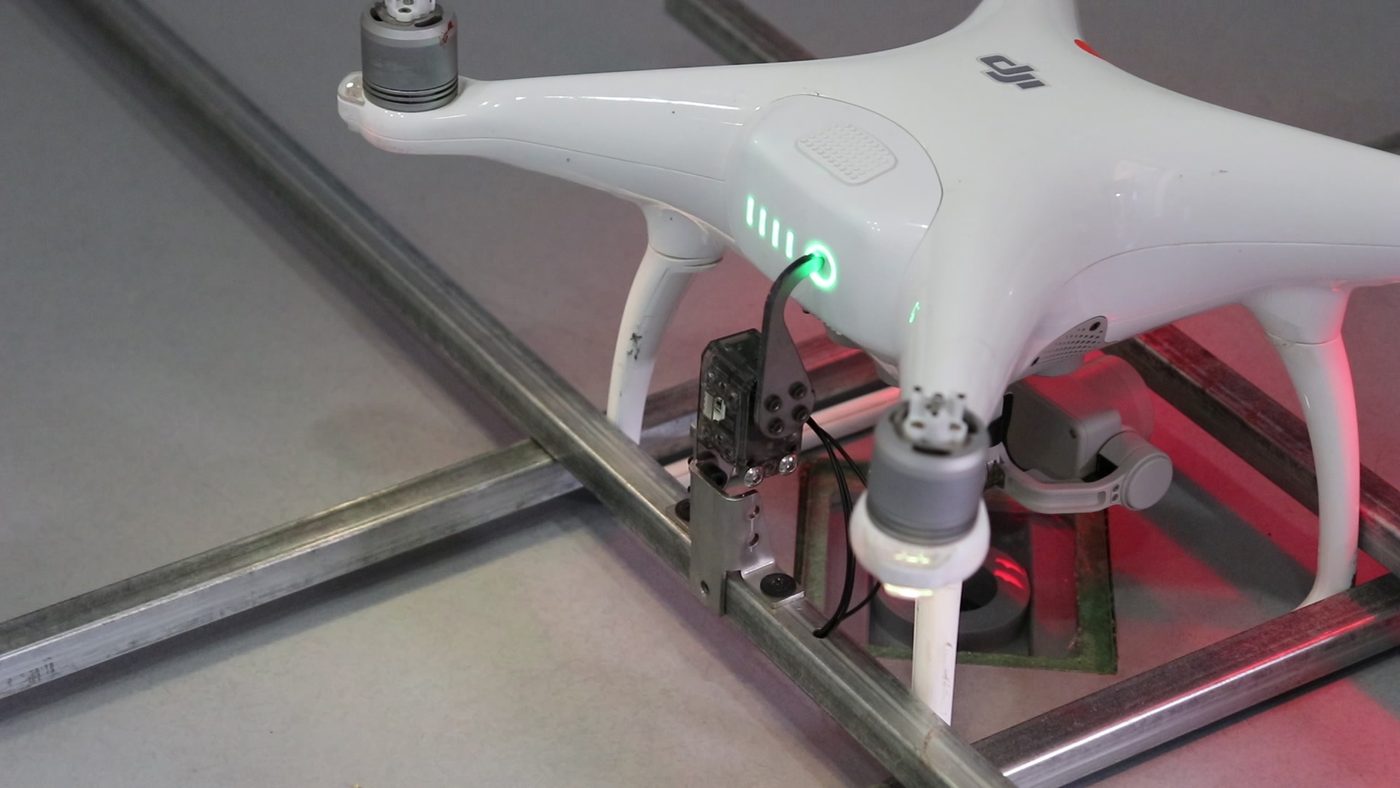

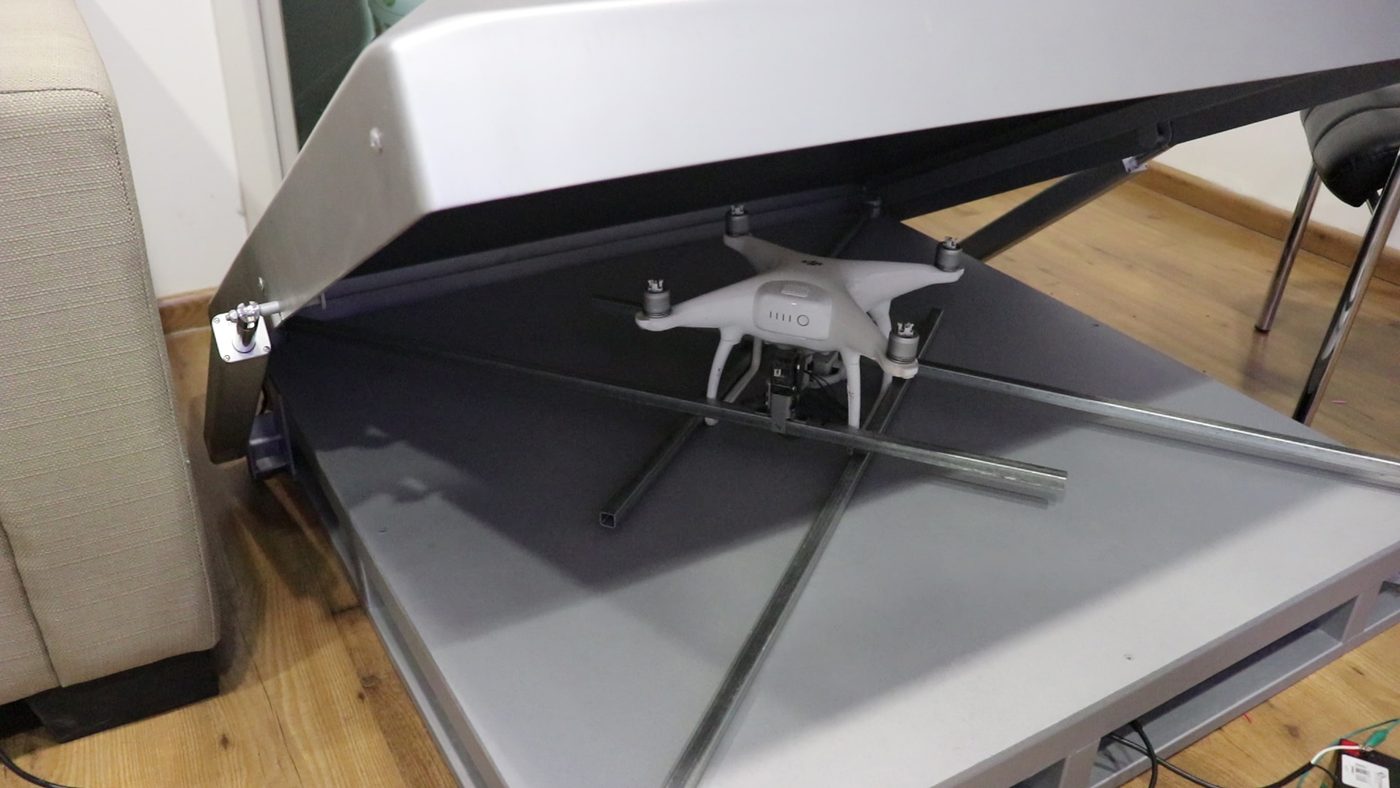

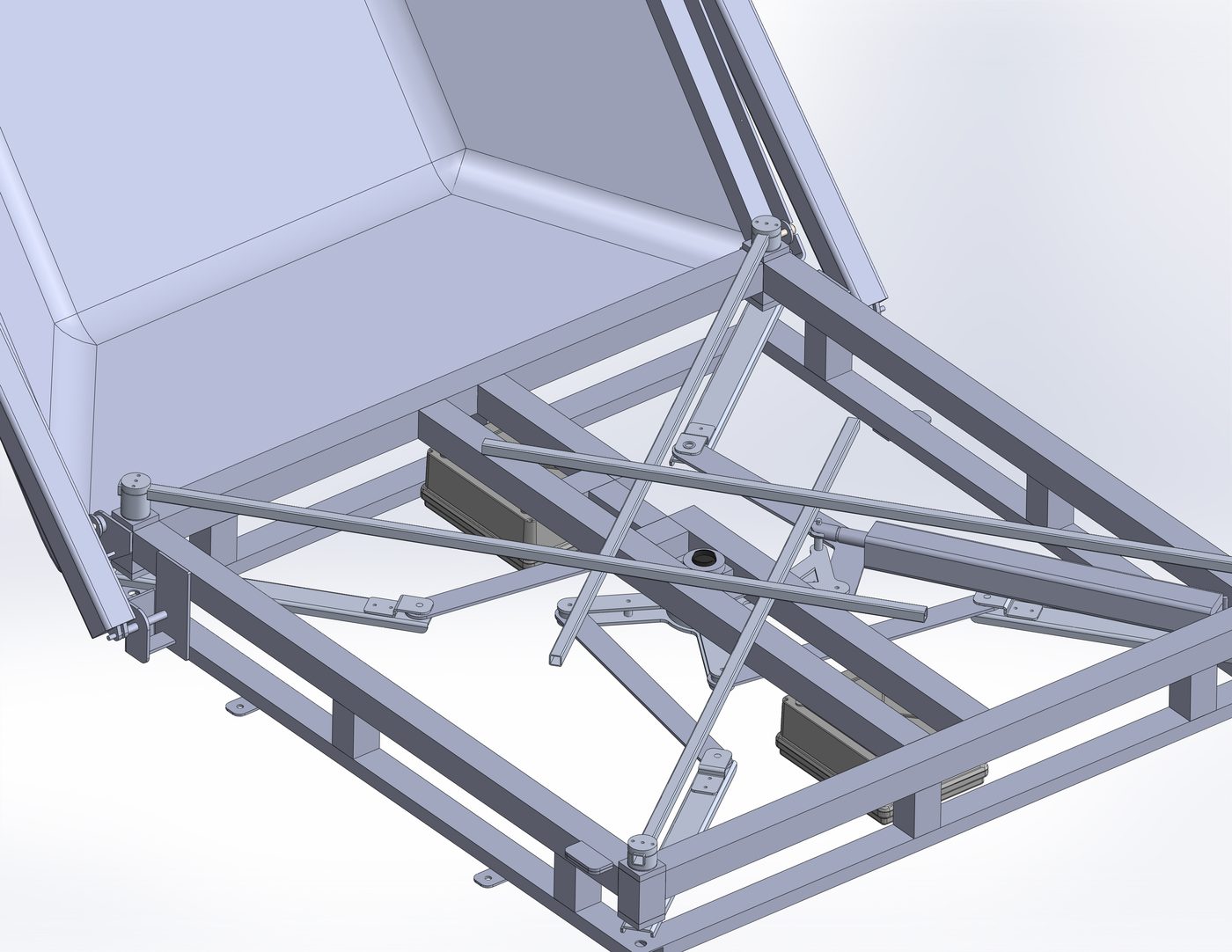

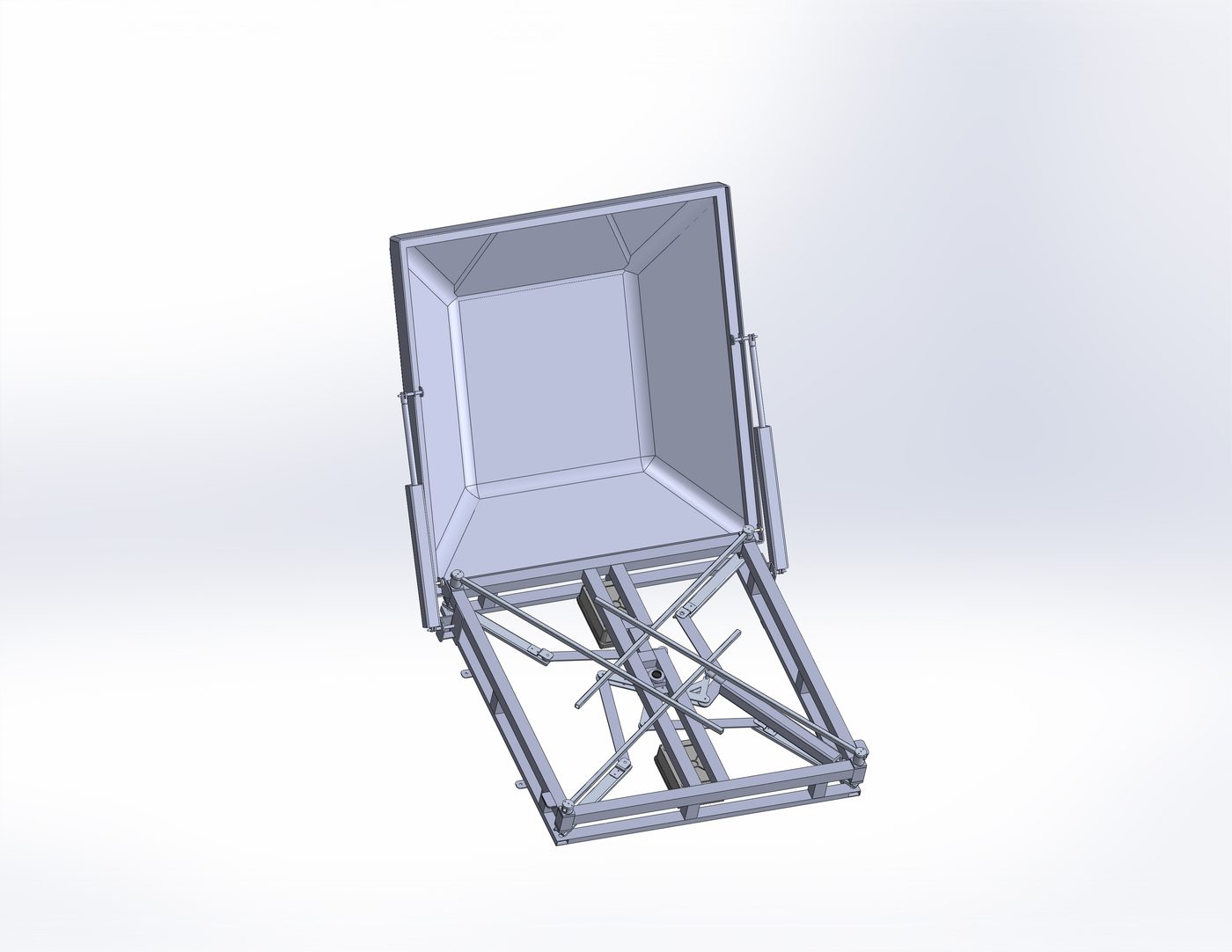

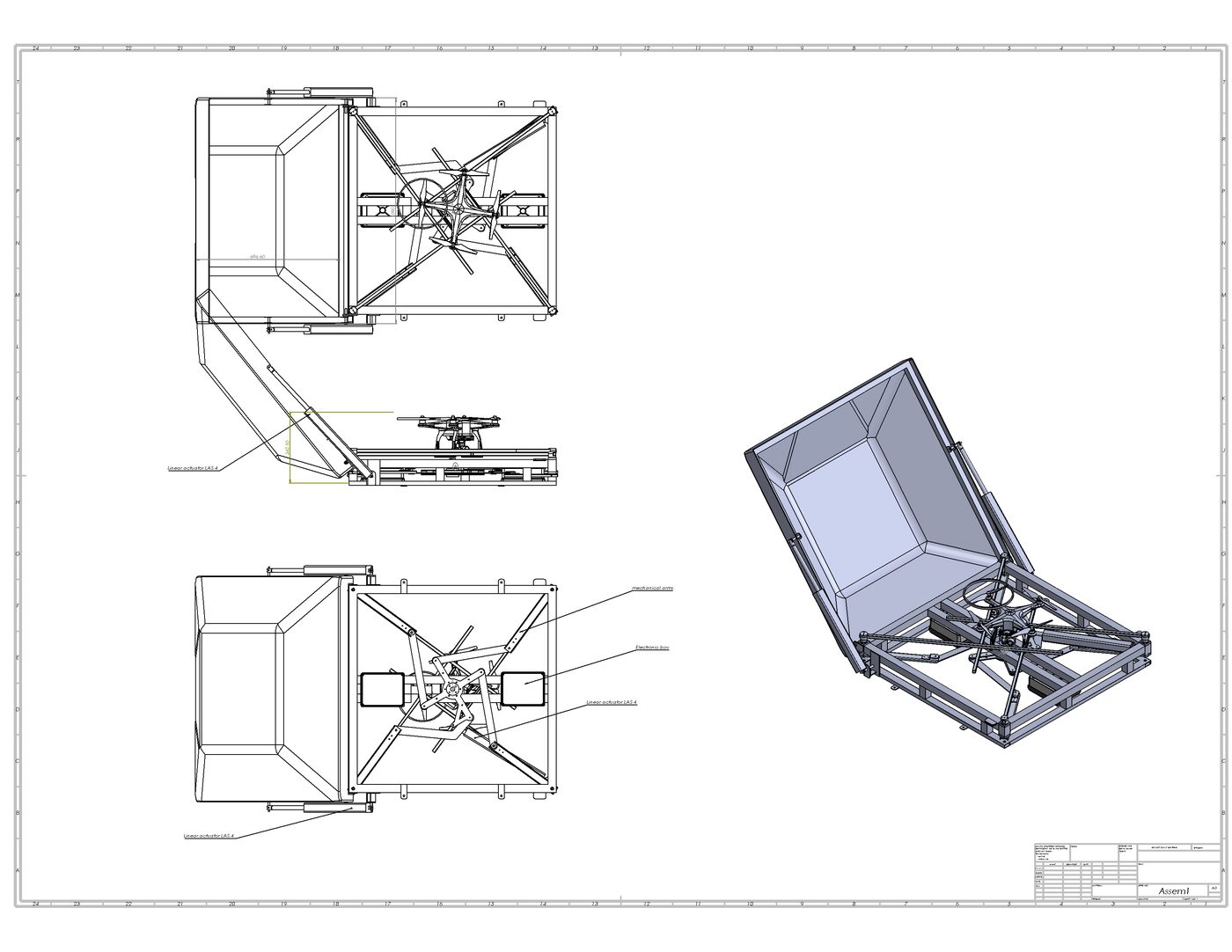

The mechanism was designed around a principle of forced positioning. Instead of relying on the drone being placed correctly, a mechanical mechanism physically centers it into place on every closing cycle. The starting state is identical on every deployment, with no dependence on placement accuracy — a mechanical answer to what looks like a control problem, and far cheaper and more reliable than one. The deployment sequence was built as a chain of confirmations: each step reports completion before the next begins. Cover fully open, then drone released from its positioning, then propellers permitted to start. That chain rules out the worst-case scenario of propellers spinning inside a closed box.
Development Scope
The work combined mechanisms for cover opening, drone positioning, and release — see our articles on mechanical engineering; limit switches confirming open/closed states, because control without feedback is guesswork; and electronics for motor drive and communication with a remote operator.
Designed for the Outdoors

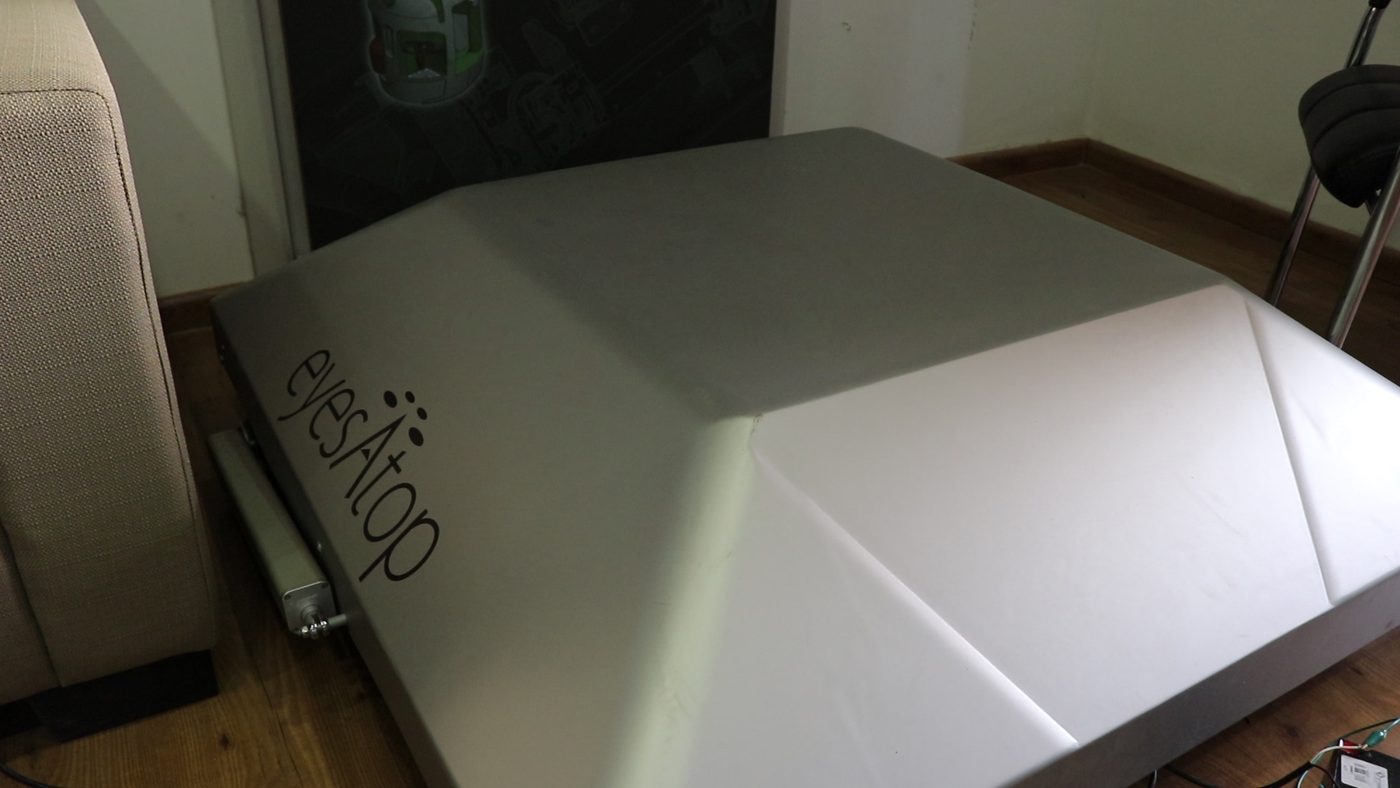

A station that lives outside must still work after months of dust and rain. Two possible failures drove the design: a cover jamming from debris in its track, and a mechanism drifting out of calibration. The answers were open tracks that shed debris instead of accumulating it, and a mechanism that reports its state instead of assuming it. The product here is not the drone — it is the subsystem that lets the drone work unattended, the kind of integration challenge we describe in drone development.
Building automation around drones or robotics? Contact Projects House to discuss your project.

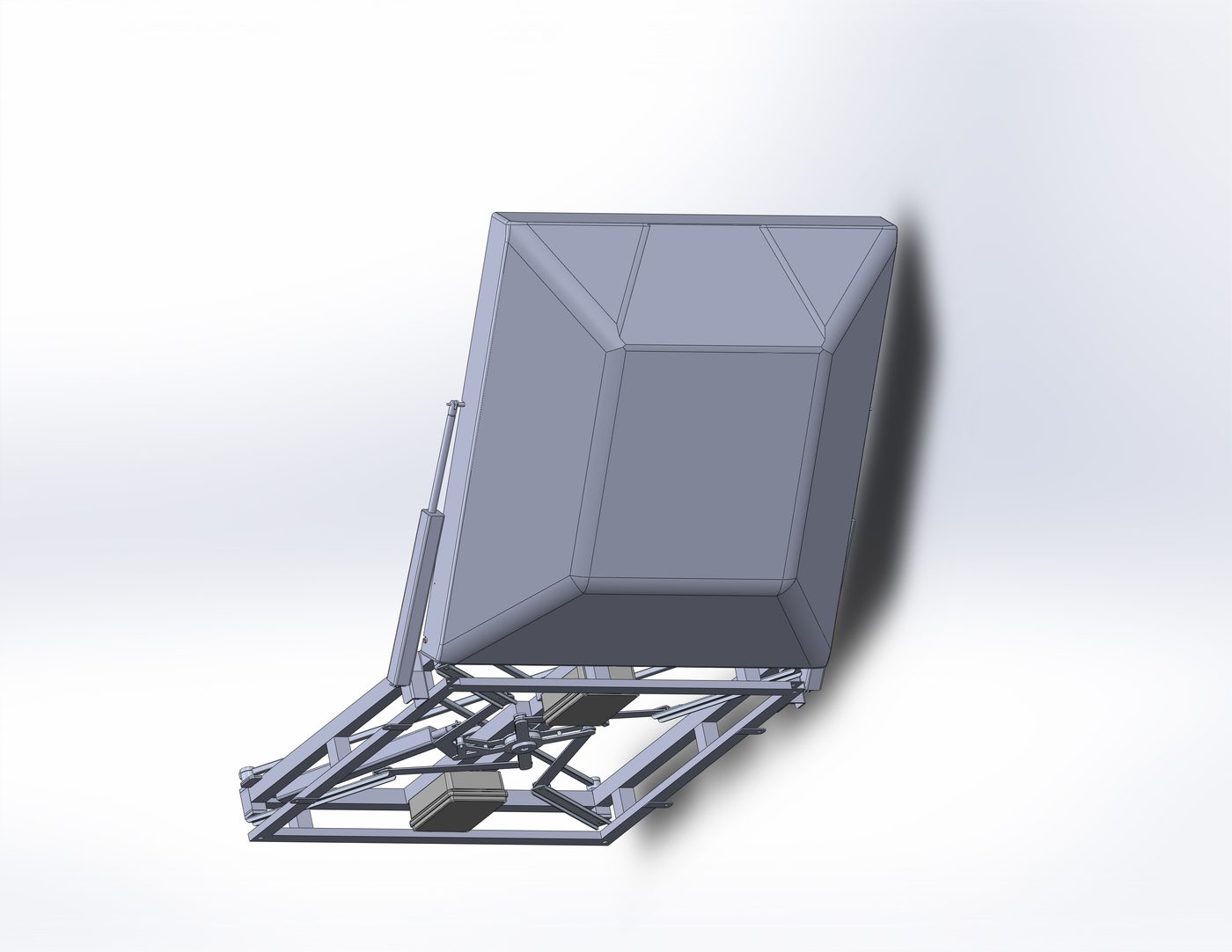

Photos from the project
