The Idea

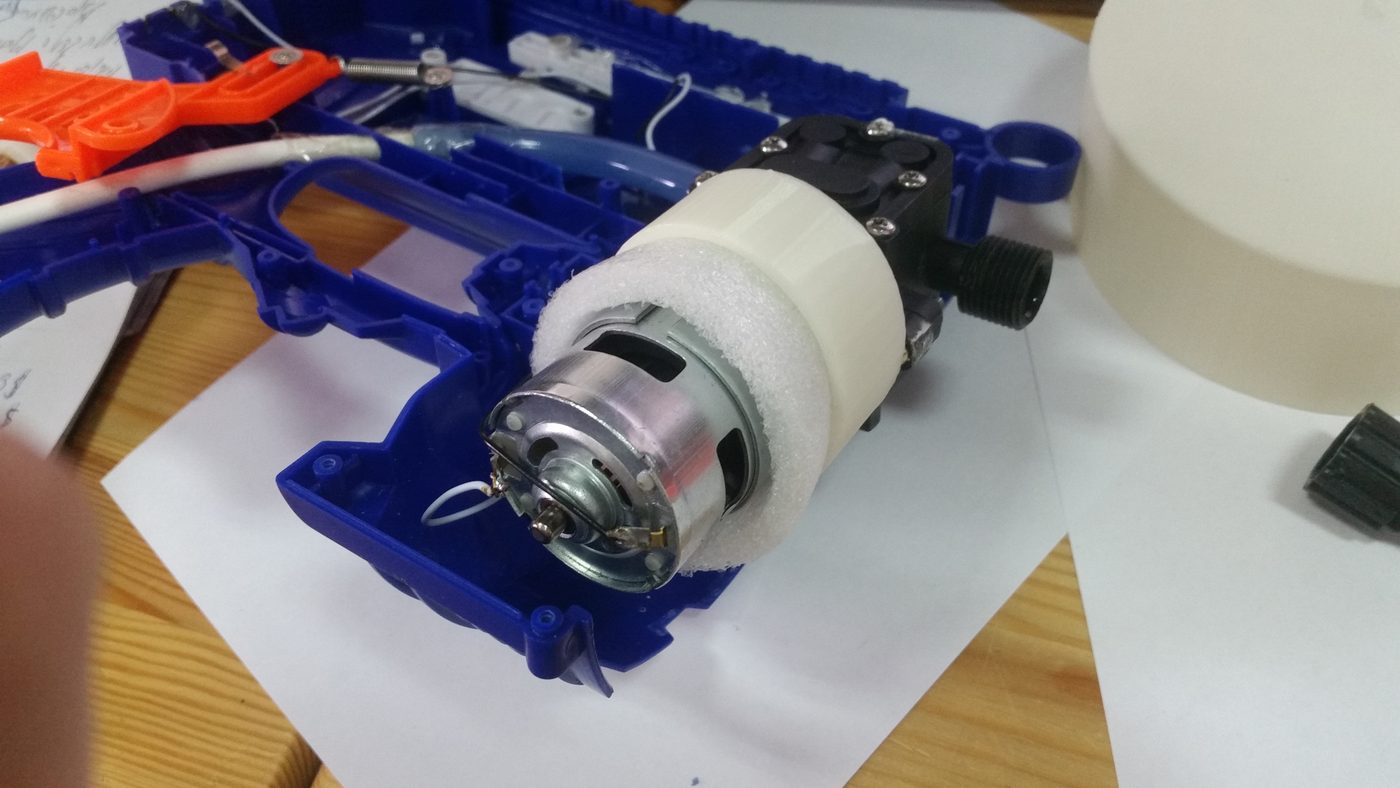

Traditional water guns rely on repeated manual pumping, which limits both range and how long the fun lasts. This project replaced the hand pump with a high-output electric pump, fed by a removable backpack water tank and powered by lithium batteries — so the user pulls the trigger and gets a continuous stream.
The Engineering Paradox: Electronics Inside a Water Product
This is the project's defining challenge. The whole product exists to spray water, and inside it live an electric pump, lithium batteries, and a controller. The expected failure is not "if" but "when" — so the design assumes water will eventually reach everywhere:
- Physical separation between the electronics compartment and the water path, not just a seal between them.
- Designed drainage — water that gets in needs a way out, or it sits and corrodes. A sealed compartment that leaks is worse than a drained one.
- Moisture-resistant connectors, with the charging port placed at the highest, most protected point.

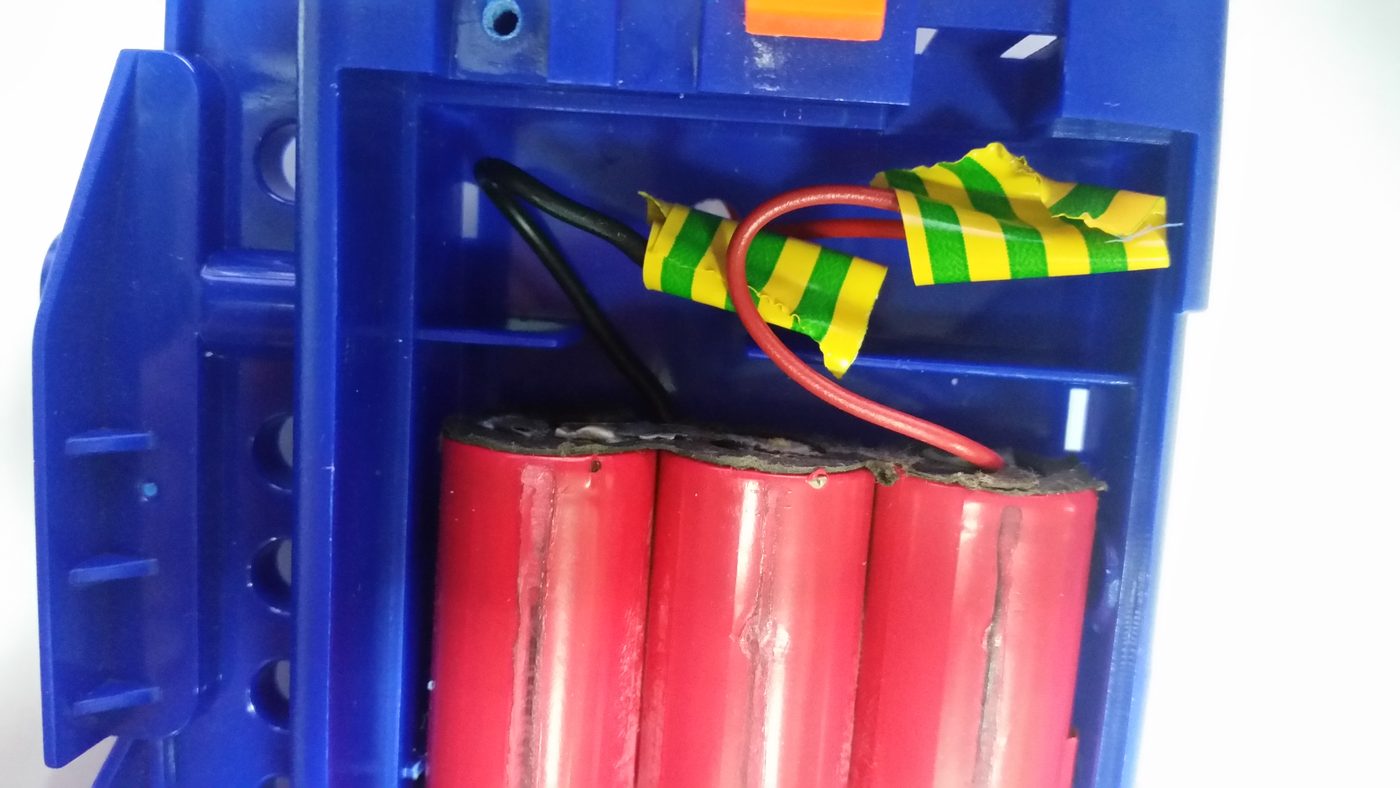

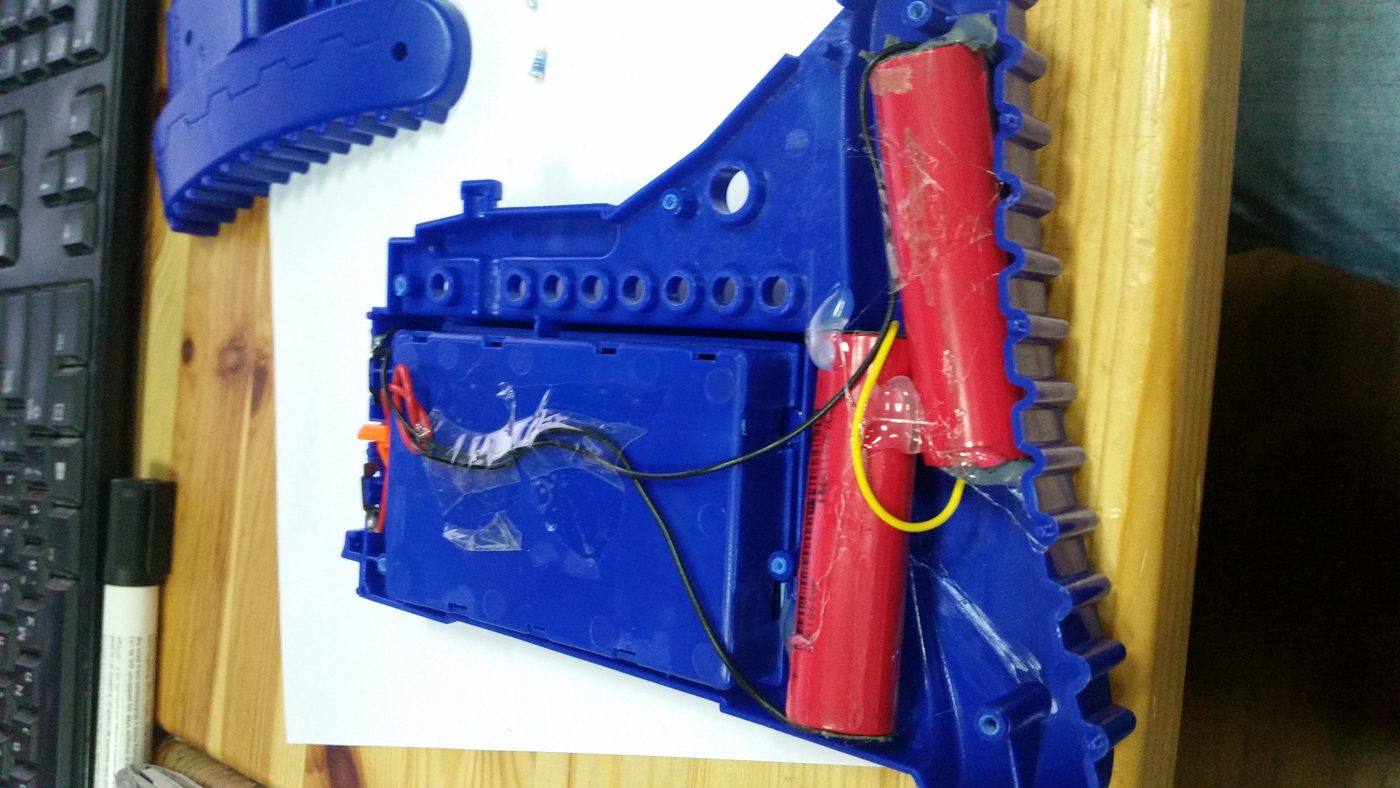

- Battery protection — lithium cells require a protection circuit against shorts and faulty charging. In a water product this is a safety requirement, not an add-on — a core concern of electronics development.
The Backpack and the Weight
Water is heavy — a liter is a kilogram, roughly two pounds a quart. A backpack tank shifts the load from the hands to the body and allows far greater capacity, but it adds two challenges: an ergonomic carry design that distributes the load, and managing a center of gravity that shifts as the tank empties during play. The hose between tank and blaster was routed so it neither snags nor tugs during movement.
Development Scope

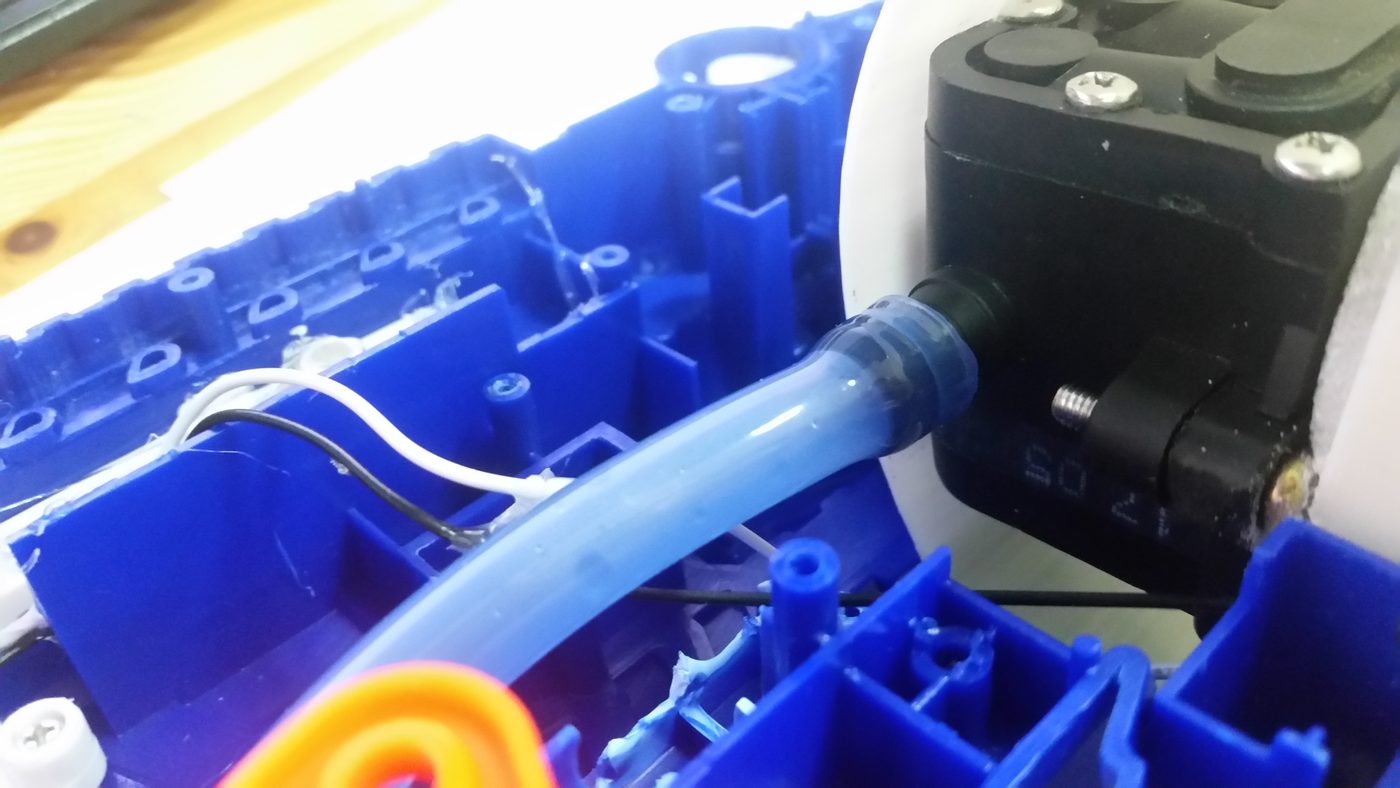

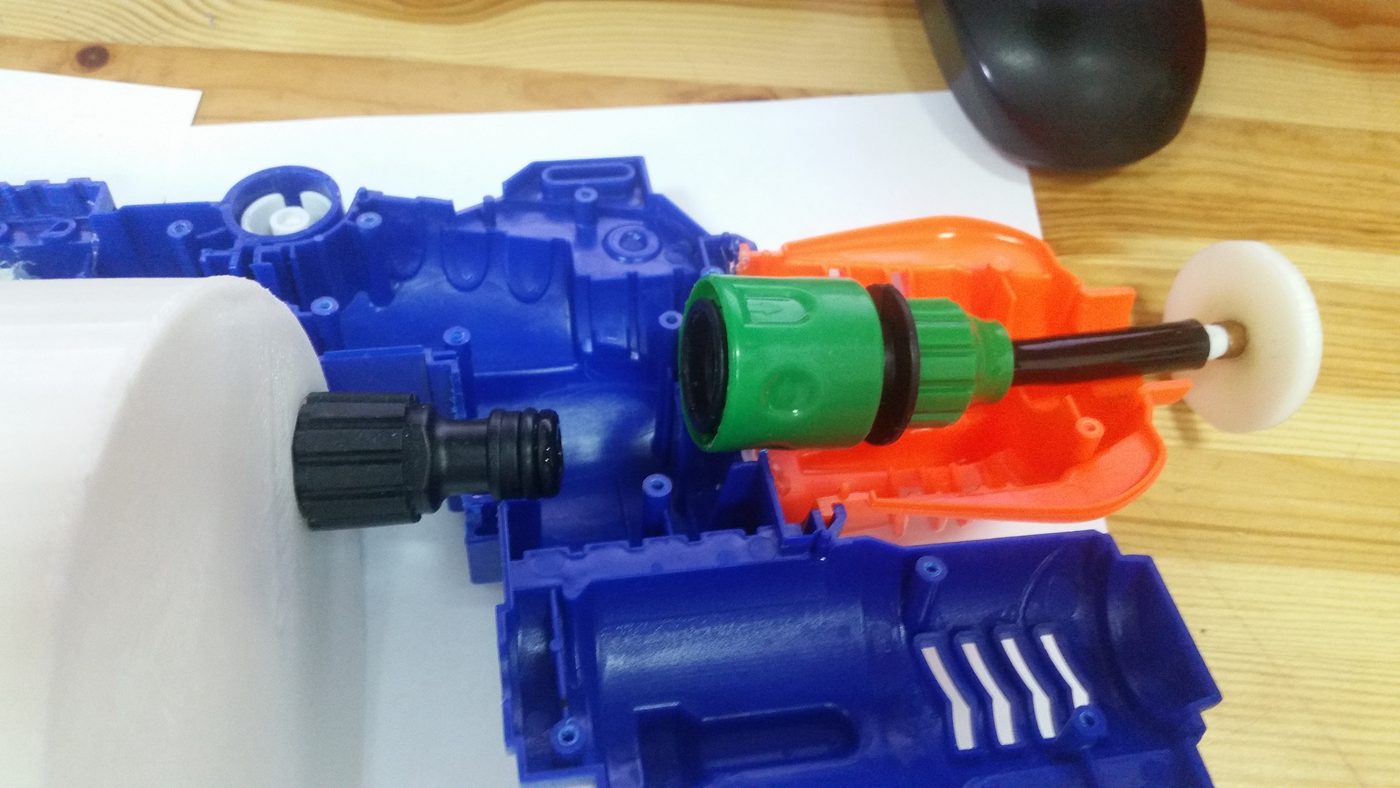

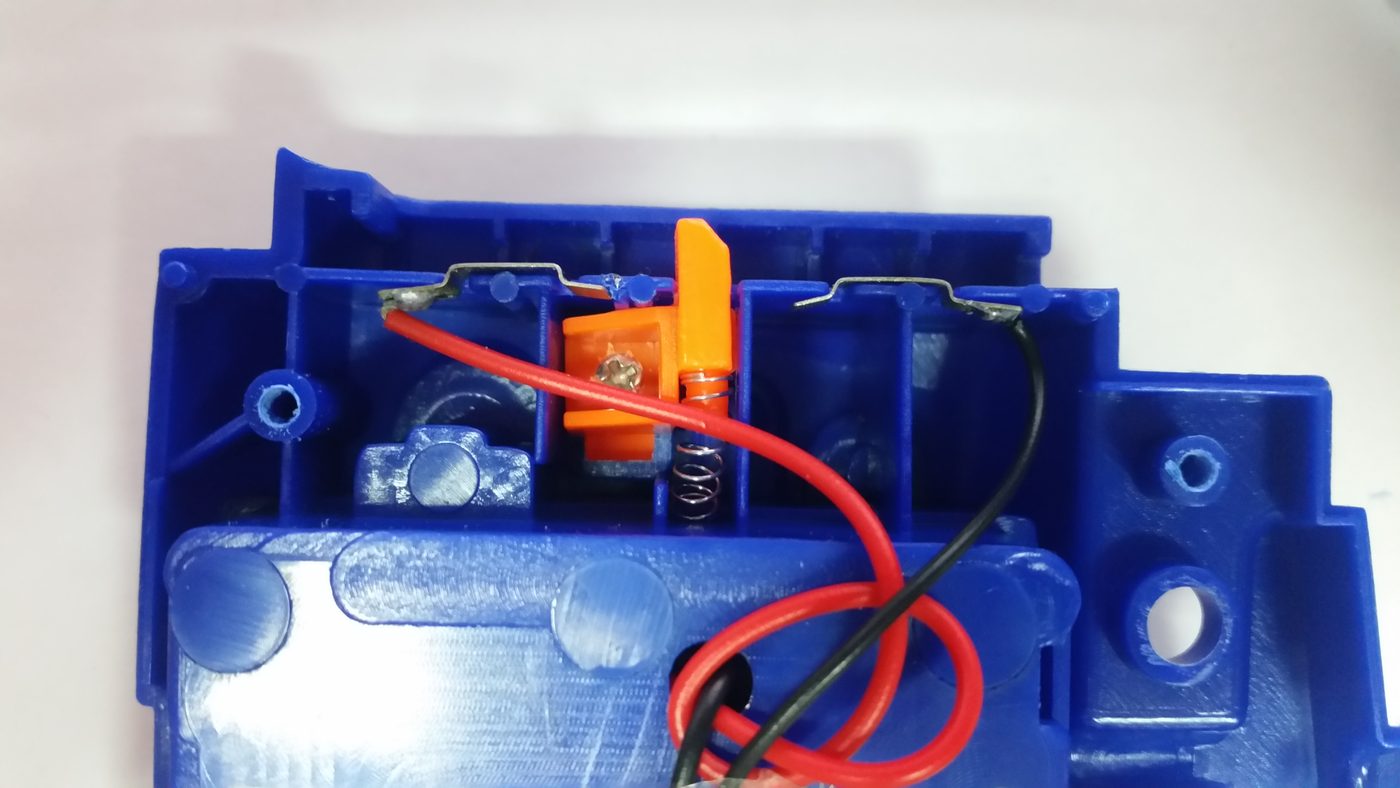

- Mechanics and hydraulics: the water path, seals, the trigger, and the tank coupling.
- Electronics and power: pump drive, battery management, and charging.
- Industrial design: grip, proportion, and a consumer-product look — see industrial design.
- Design for manufacturing: injection-molded plastic parts at volume — see new product development.
What It Demonstrates
A consumer product is judged not only on function but on surviving careless use — because that is how it actually gets used.
Have a consumer product idea? Contact Projects House through the form and we will help you take it from concept to store shelf.

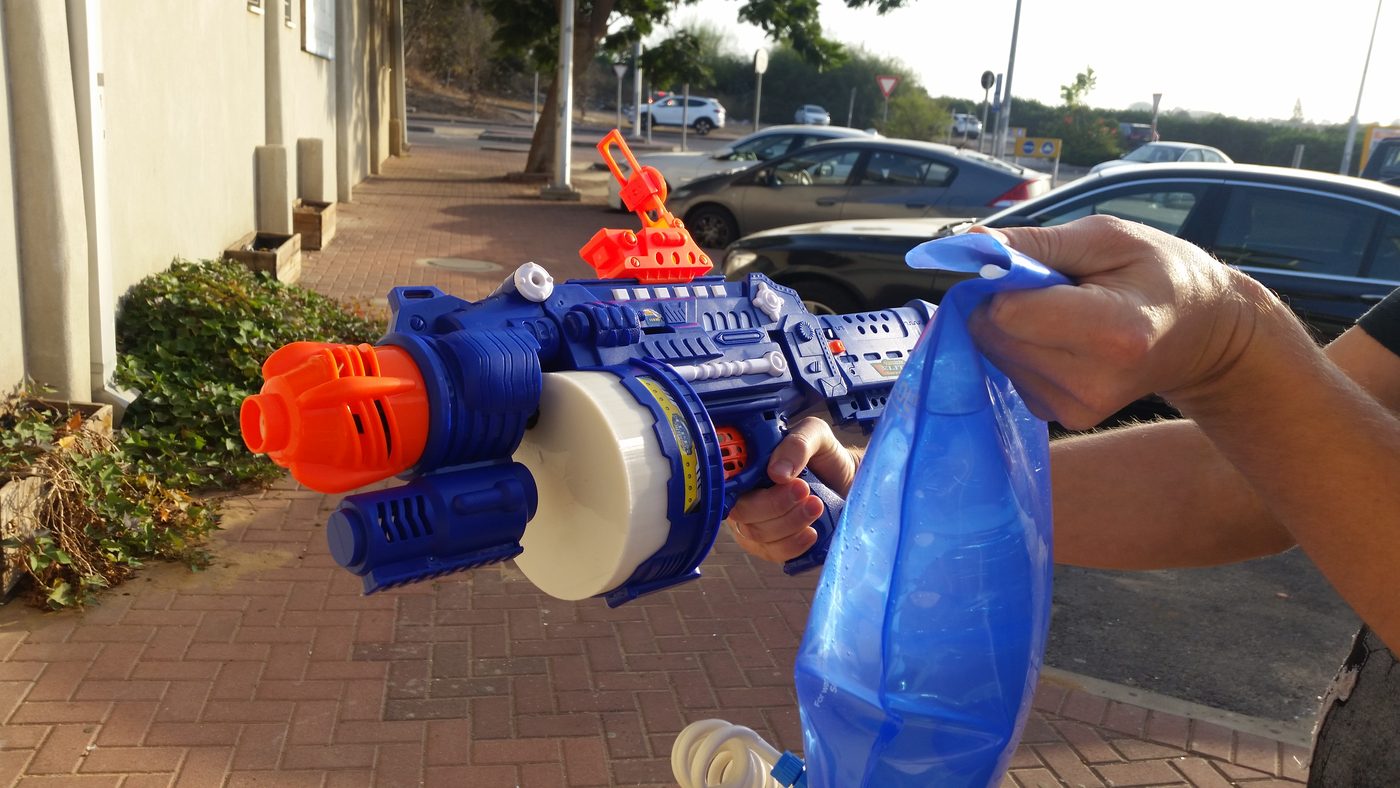

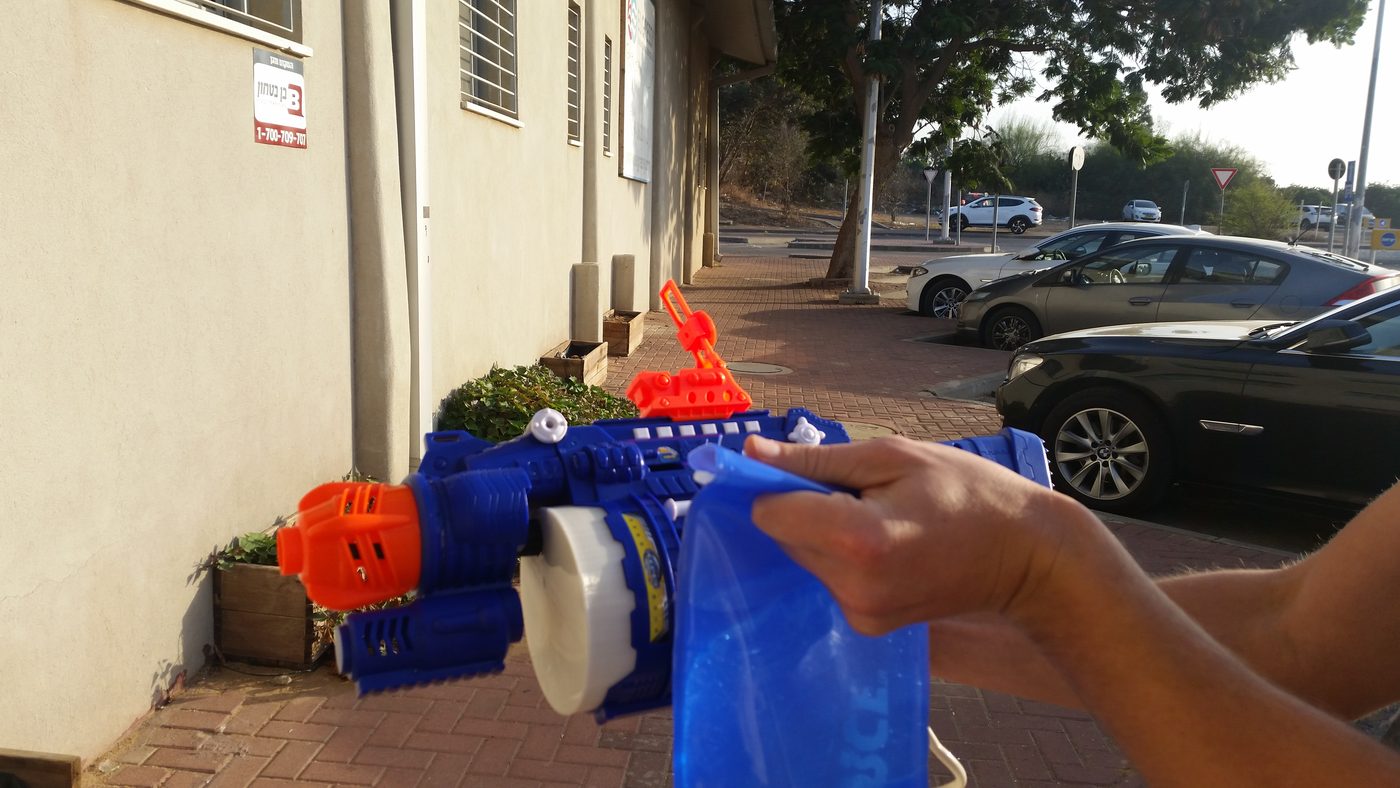

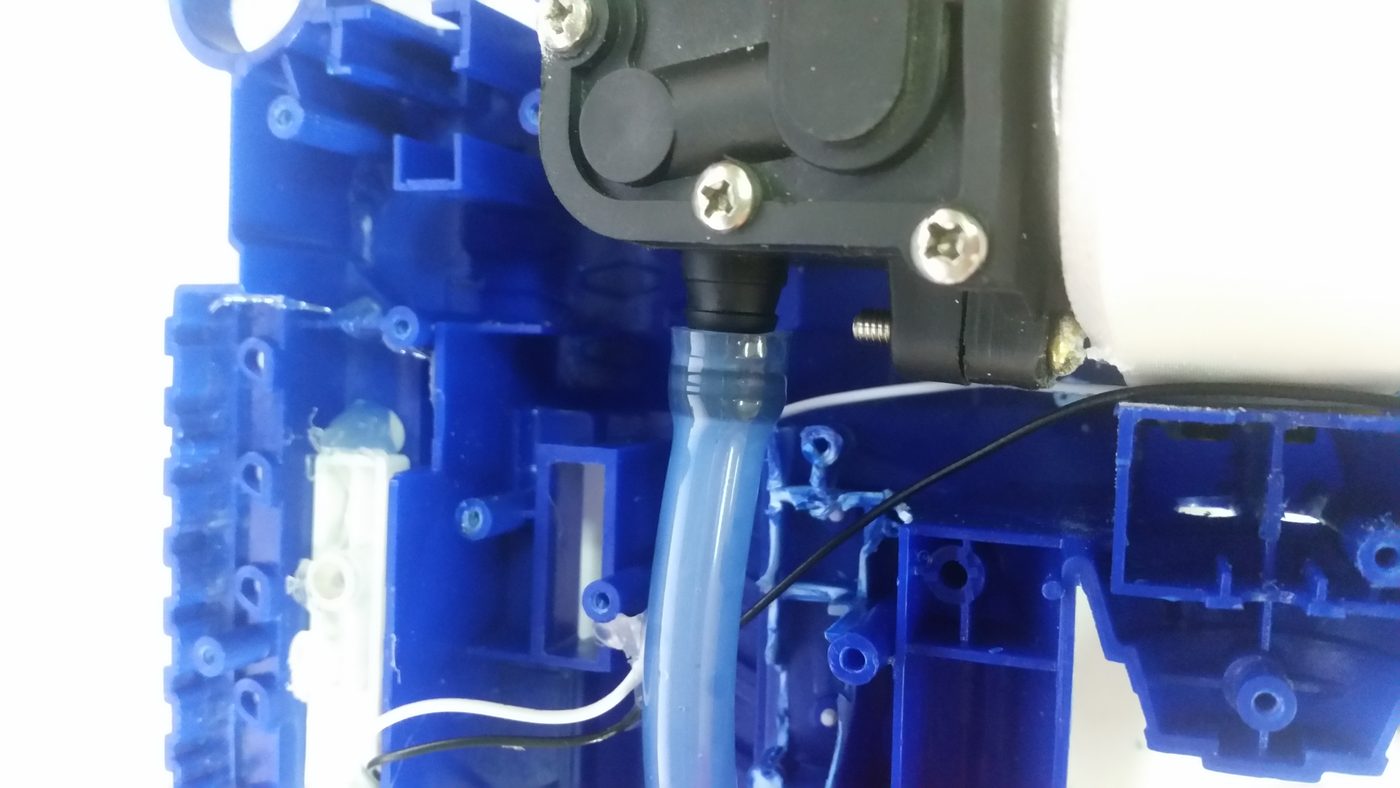

Photos from the project
