Project developed in partnership with Gizmo Engineering
The Idea
A conventional drone is limited by its reach: it has to take off from the ground and fly all the way to the target, burning battery and exposing itself the whole way. Spear was built to solve that — a folding drone launched inside a missile body that deploys in mid-air and begins its mission already near the target. The system is autonomous, with imaging capability and the ability to carry small payloads.
Three Challenges With No Parallel in a Regular Drone
1. Surviving the Launch
Launch acceleration loads are orders of magnitude beyond anything a drone experiences in flight. Every component — motor, battery, camera, electronics board — must withstand that load while folded and clamped. It changes the design end to end: no components hanging on cables, no large masses on long arms, and everything secured along at least two axes.
2. Deploying Reliably, Once

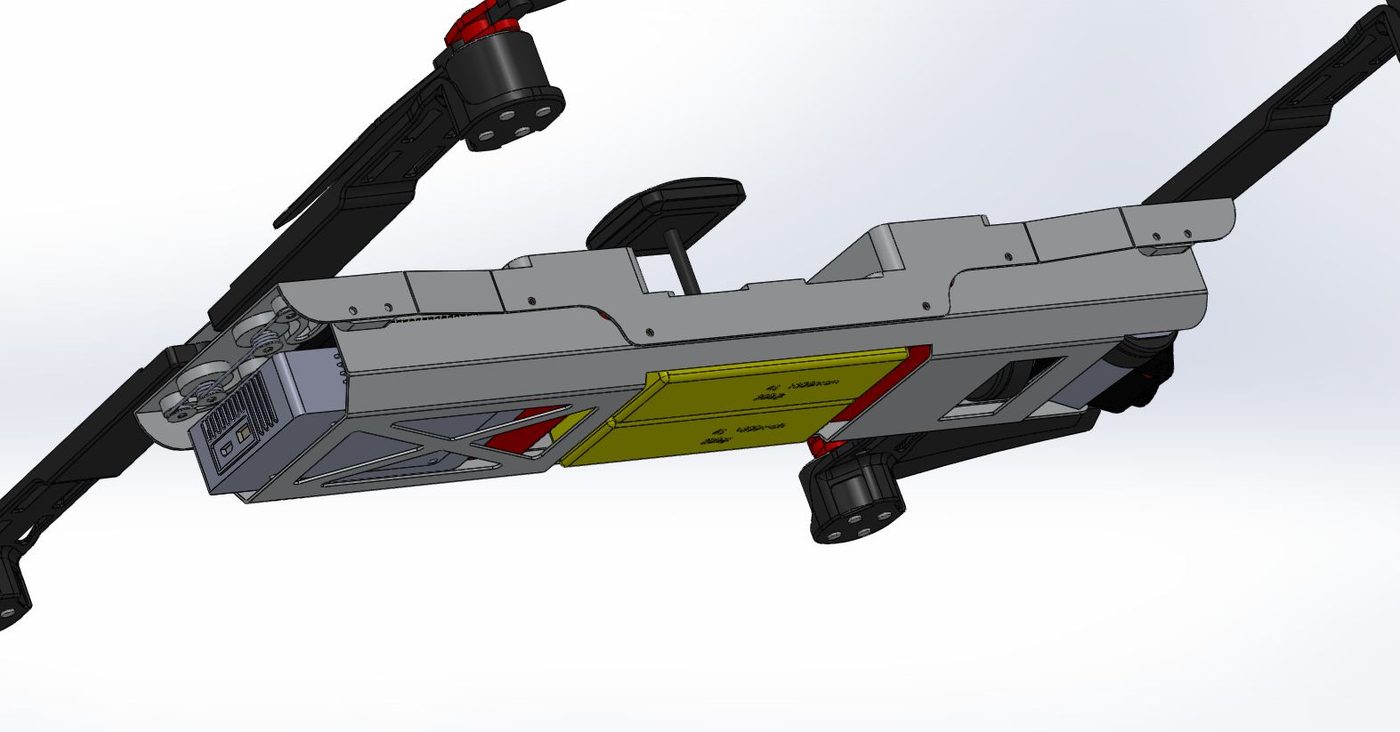

The deployment mechanism is the critical failure point: there is no second chance, and if one arm fails to unfold the drone cannot fly. The design answer is to minimize the number of components that must act — spring-driven arms that deploy themselves on a single lock release, instead of motors performing the deployment. Fewer active components means fewer things that can fail — a principle straight from disciplined mechanical engineering.
3. Weight and Volume at the Same Time
In a regular drone you fight for weight. Here you also fight for volume, because the drone must fit the launcher's internal diameter. The two constraints push in opposite directions: a compact structure demands folding, folding demands joints, and joints add weight. That balance is the entire design.
Development Scope

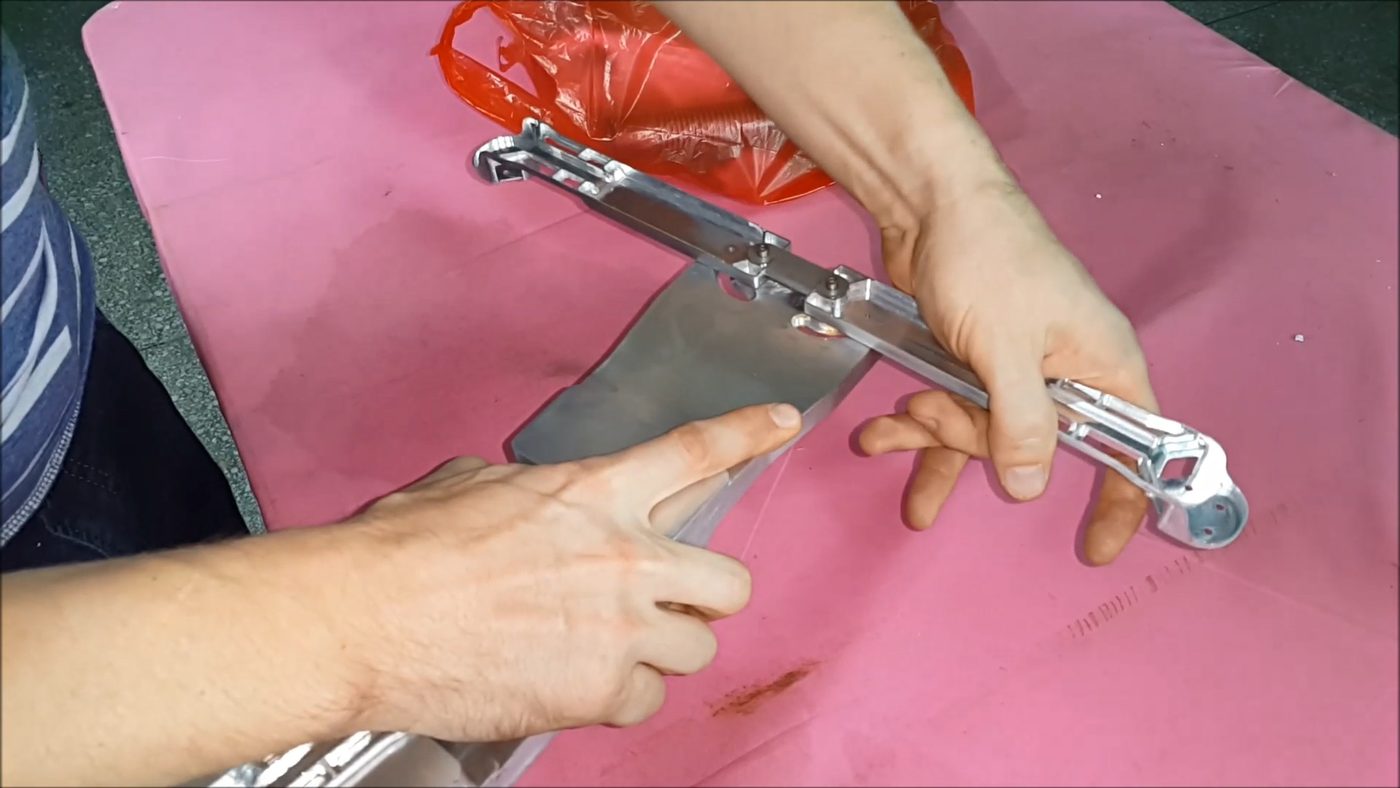

- Mechanics and mechanisms: folding, locking, and deployment.
- Composite materials: stiffness-to-weight ratio — see the production methods in manufacturing technologies.
- Electronics and flight control: stabilization at the instant of deployment, the hardest moment of the flight — see drone development.
- Imaging and payload: a mechanical and electrical interface for carrying a small payload.
A Note on Context
This is a defense-sector project, so the details presented here are deliberately general. Defense projects are subject to confidentiality constraints and export regulations, and we work accordingly.
Developing an unmanned system or another demanding aerospace product? Contact Projects House through the form to discuss it.

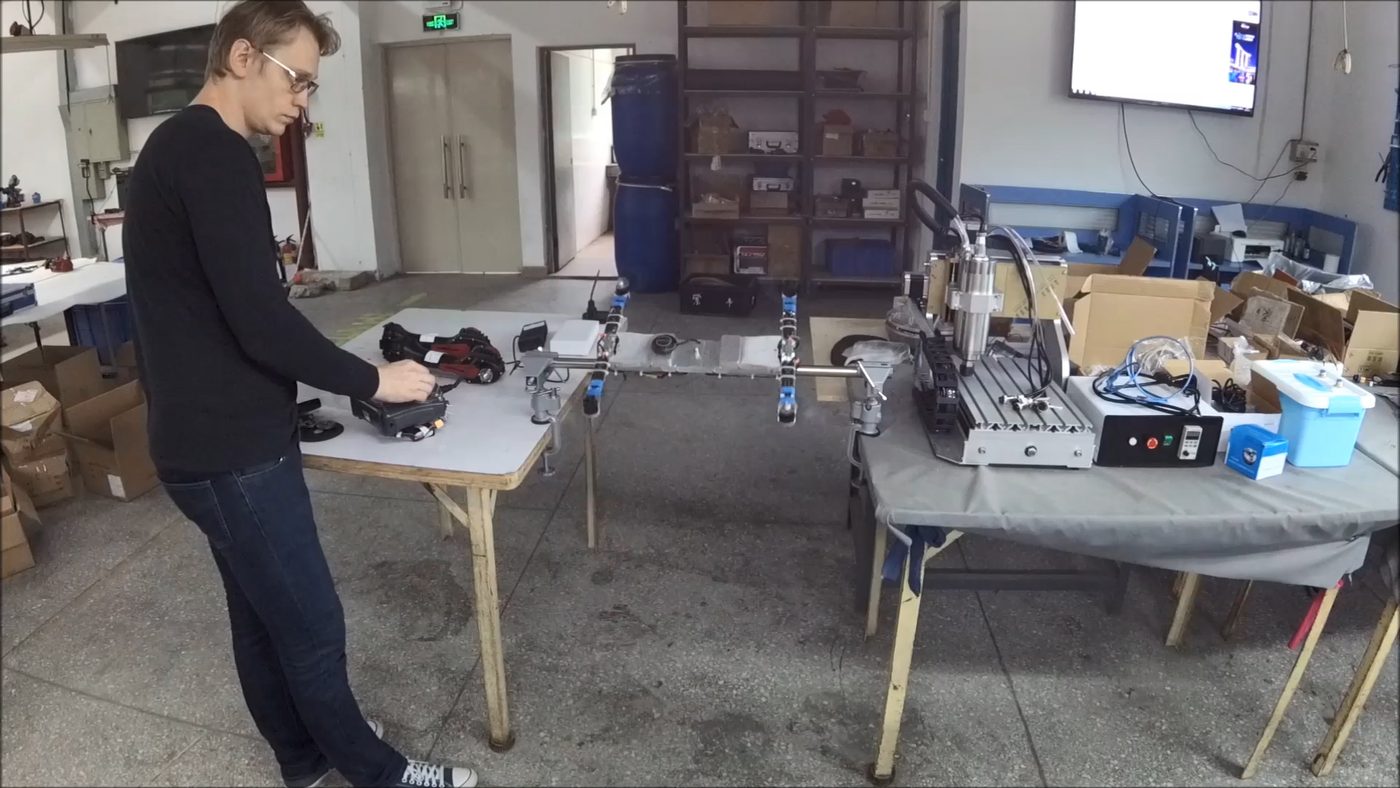

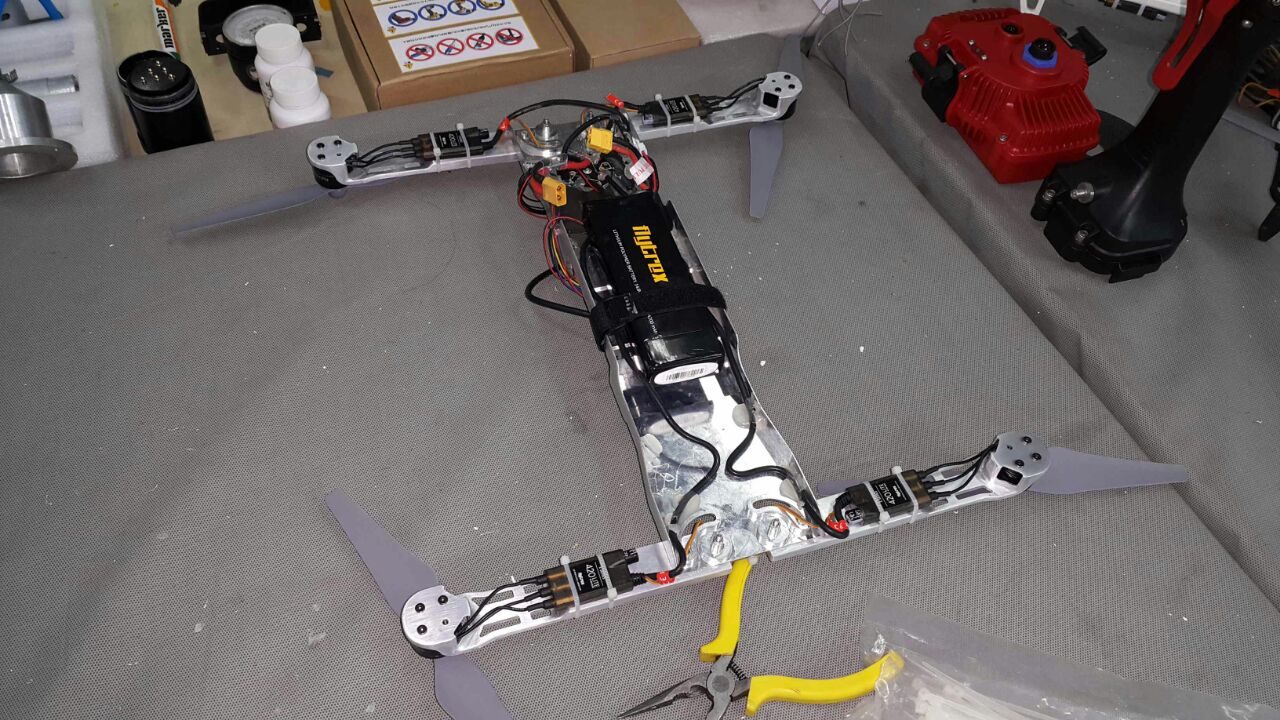

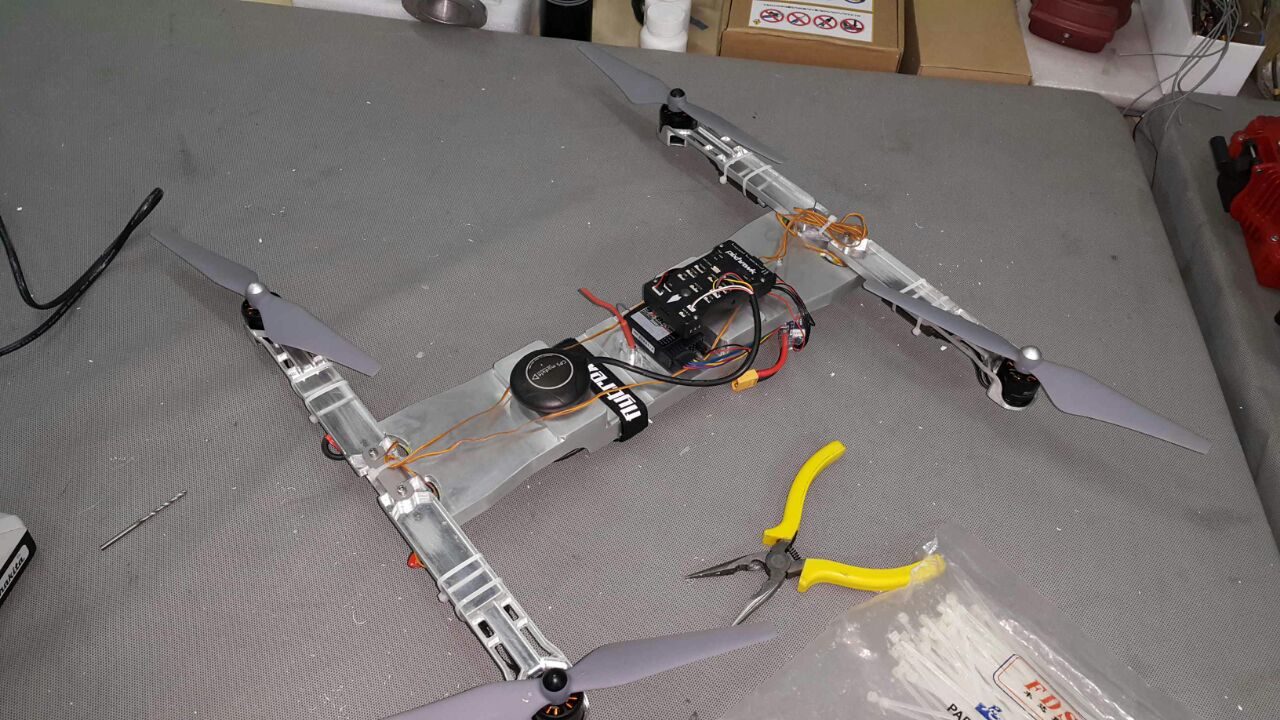

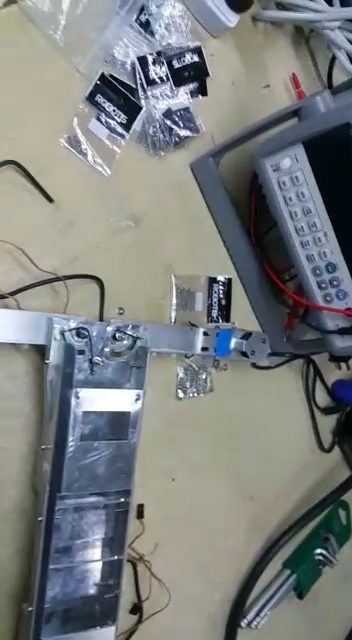

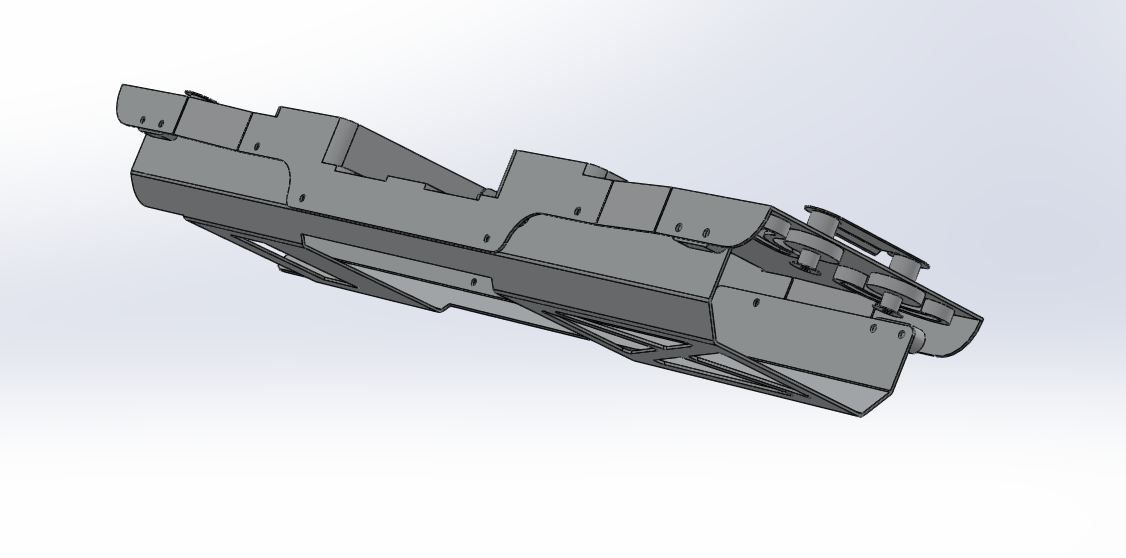

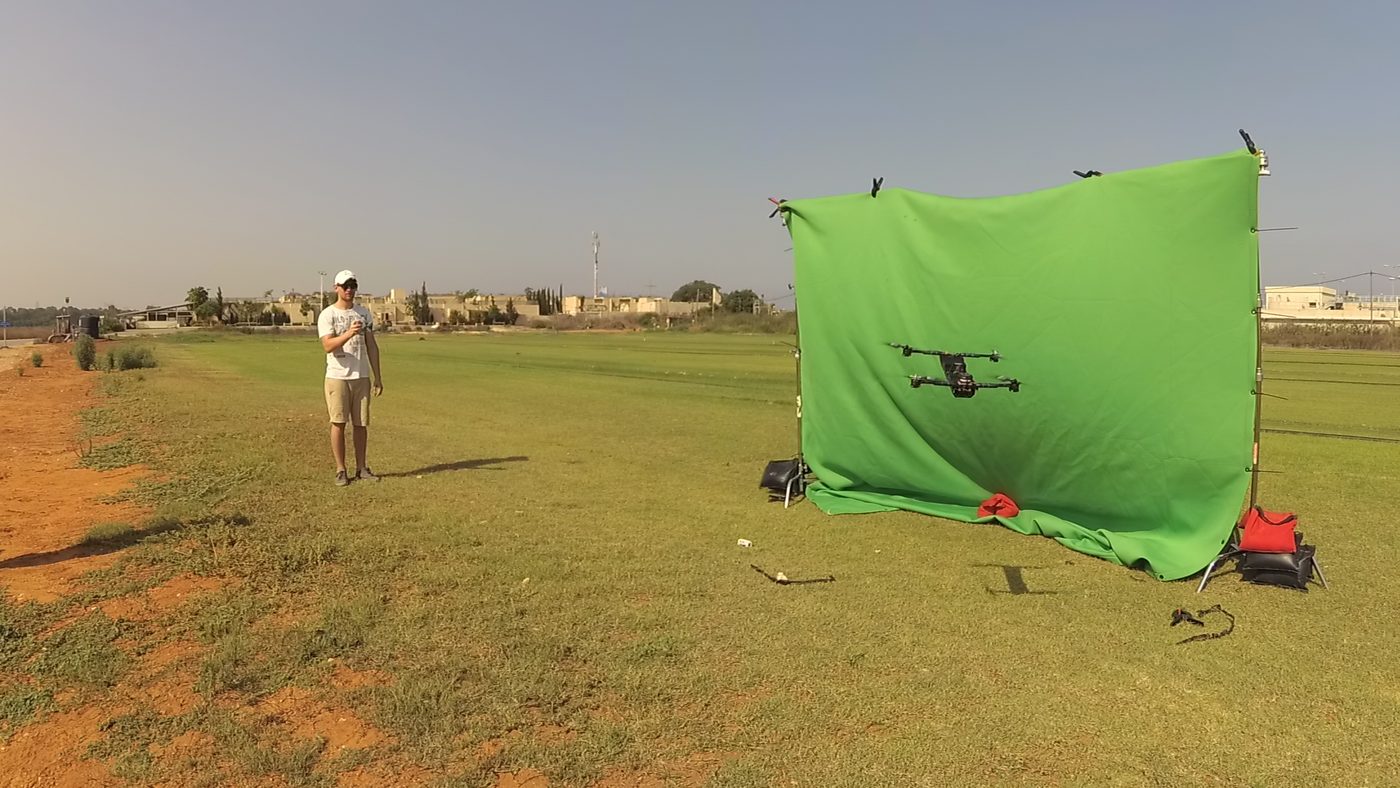

Photos from the project
